KDTS Products for Thailand and Other Southeast Asia Countries

KDTS Co.,Ltd has a branch office in operation in Bangkok Thailand and has been offering various IT related services to Japanese companies in Thailand for many years.

Network infrastructure in Thailand has not been strong and reliable, although it has improved a lot these days. Many Japanese companies located in Thailand, especially located in remote areas, has been facing fragile IT infrastructure problem for many years, causing a lot of inconvenience and disruption in business.
KDTS Co.,Ltd has developed and launched 2 IT hardware products in Thailand to support those Japanese companies who encounter insufficient network infrastructure problem. We believe that these 2 products can be of great help not only in Thailand but also in other Southeast Asian countries who still have weak and insufficient internet infrastructure.

i-Switch (Internet Automatic Switcher)

i-Switch monitors usage status of internet network lines and automatically sort client request to the best internet line available and thus it ensures smooth continuation of IT operation even under fragile and insufficient internet environment.

i-Capture (Network Capture)

(Standard/ Middle/ Professional)

All network data are recorded without fail. It works under 100Mbps- 300Mbps environment. And all the captured data can be stored in less expensive external HDD. Another important point is that i-Capture is a bridge connect network data capture device which is totally in compliance with Thailand computer criminal act requirements.

---

i-Switch (Internet Automatic Switcher)

i-Switch monitors usage status of internet network lines and automatically sort client request to the best internet line available and thus it ensures smooth continuation of IT operation even under fragile and insufficient internet environment.

i-Switch monitors usage status of internet network lines and automatically sort client request to the best network line available.

User can install i-switch to your network without difficulty. Once user sets up IP address of internet line, user can use it immediately.  User can also use it with more advanced setting and application.

i-Switch can be best functional and useful in the following cases:

1. User likes to deploy multiple, less expensive (although low speed) internet network lines, rather than deploying expensive high-speed internet network line. But user is not sure if it is a right decision or not as the network connection may not be reliable in quality.
2. User manages segmentation in multiple lines. But due to network breakdown, some segment cannot be connected to internet line.
3. Multiple users access the internet network line simultaneously, causing heavy network load and thus causes disruption of network connection.

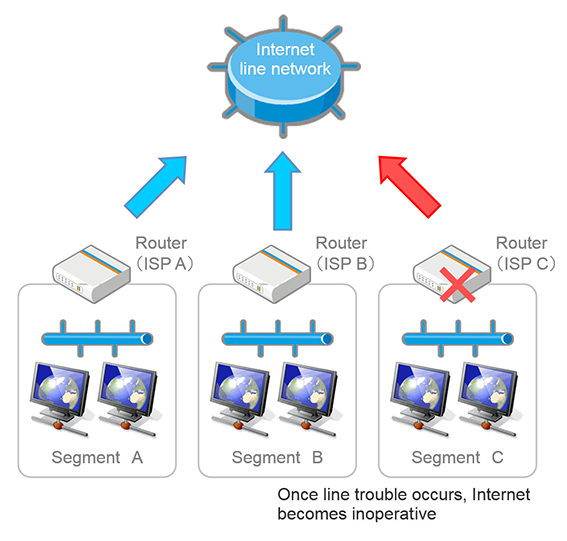

#2 case: Before i-Switch deployment

Multiple internet lines are deployed and thus it requires segment management per line.
Once one line is disrupted, the segment of corresponding line cannot be connected to internet.

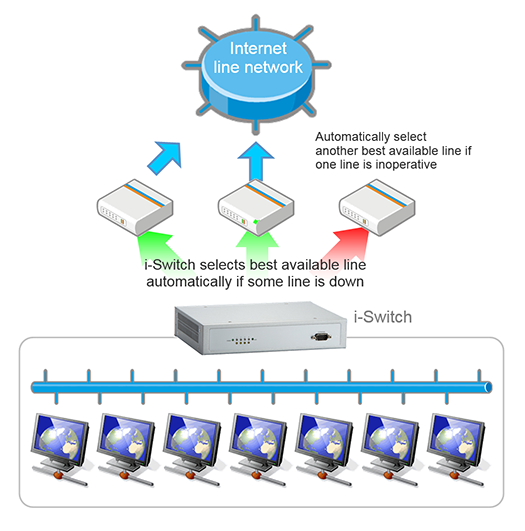

After deployment of i-Switch to internet network

As i-Switch automatically manage multiple internet lines, segment management in multiple lines is no longer required. Even if one line becomes disrupted, i-Switch automatically and instantly selects the best line available and thus ensures continuous connection of internet access.

Professional Version is available, too.

i-Switch professional version ensures simultaneous access by a large number of users to internet line without disruption. It does not require to install expensive internet line in order to secure bandwidth to cover a large number of simultaneous access.

i-Switch specification

	Standard	Professional
Max bandwidth	200Mbps	500Mbps
Max connections	2,000 units	5,000 units
Network slot	4 port (10/100/1000Mbps)	9 port(10/100/1000Mbps)
Environment	0°C - 45°C	0°C - 40°C
Dimensions(mm)	230x44x152	428x44x430
Weight	2.9kg	10.5kg
Accessories	DC adapter 12V/5A x1	power cable x1

---

i-Capture (Network Capture)

< Standard / Middle / Professional >

Easy and low-cost system operation with i-Capture

All network data are recorded without fail. It works under 100Mbps- 300Mbps environment. And all the captured data can be stored in less expensive external HDD. Another important point is that i-Capture is a bridge connect network data capture device which is totally in compliance with Thailand computer criminal act requirements.

Easy and low-cost system operation with i-Capture

i-Capture itself does not store any data. All the data are stored at external HDD with USB connection. Once connected, it starts all recording. And if you install another external HDD before current HDD becomes full, i-Capture will automatically switch the recording to the new HDD without any disruption once current HDD becomes full.

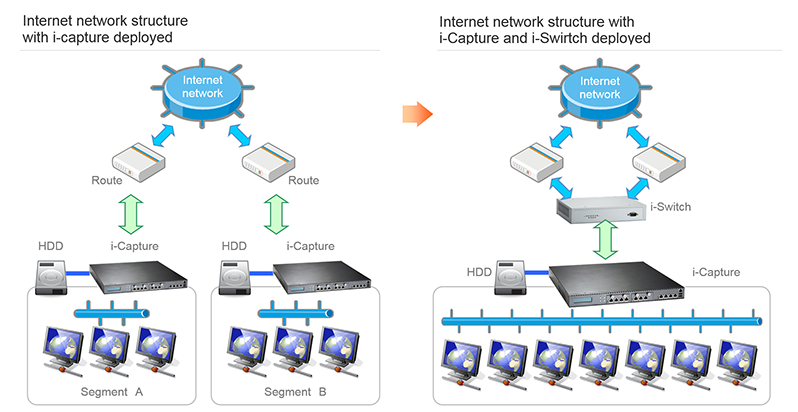

Deployment case

1. With i-Capture only
2. With i-Capture and i-Switch

Easy Data Analysis with Wireshark

Data analysis is easy with network analyzer "Wireshark". Wireshark is an open source network analyzer software and widely utilized worldwide. i-Capture can analyze even attached file to email so user can grasp all contents of data through internet line.

Low-cost but high-performance feature

i-Capture function is just to record the network data only and recorded data analysis is left to open software Wireshark. This is the reason why i-Capture is a low-cost operation device. And yet it is a high-performance bridge type device as it realizes data capture from wide range bandwidth at a very minimum internet load.

i-Capture specification

	Standard	Middle	Professional
Max connections	100Mbps	150Mbps	300Mbps
Environment	0°C - 45°C	0°C - 40°C	0°C - 40°C
Dimensions(mm)	230x44x152	230x44x152	428x44x430
Weight	2.9kg	3.0kg	10.5kg
Accessories	DC adapter 12V/5A x1	DC adapter 12V/5A x1	power cable x1
